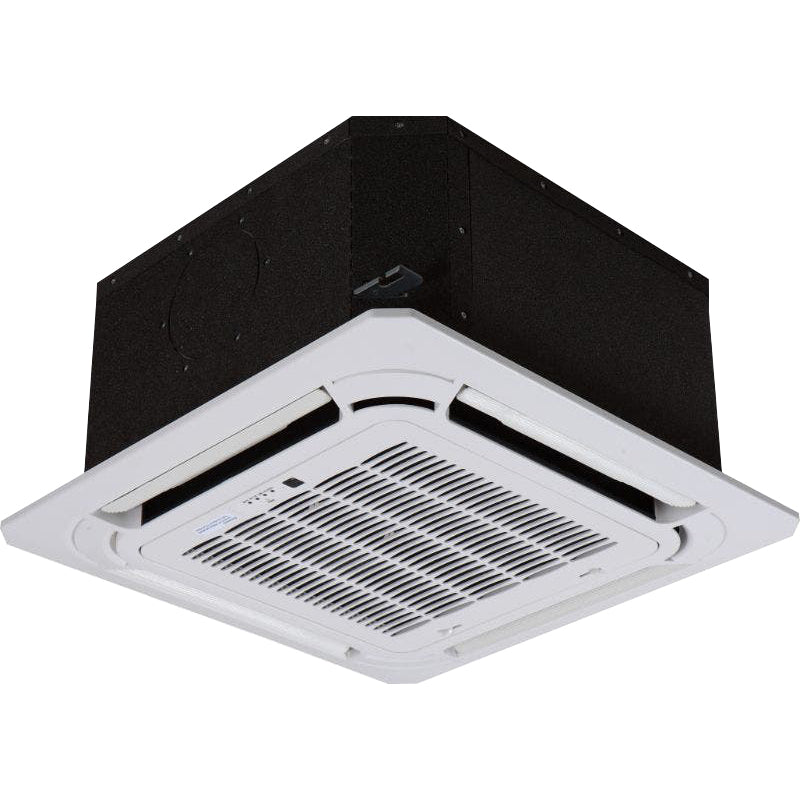

DESCRIPTION If you prefer a more discreet air distribution system without the air handler on your wall, ACiQ offers the ACIQ-09CC-HH-MB ceiling cassette air handler. This ceiling cassette option provides a hidden appearance and centralized air distribution while delivering the same high-efficiency heating and cooling performance as a regular wall-mounted unit. It comes with a handheld remote control for convenient operation. Once installed in the ceiling, only the grille remains visible, offering a subtle and understated aesthetic.
Installation Considerations Ceiling cassettes require a flush-mounted installation, which involves removing enough ceiling material to create a cavity for the unit. These units are compatible with 24" on-center joists but may require modifications to fit between 16" on-center joists. Additionally, ceiling cassettes come with factory-installed onboard pumps to lift the condensation produced during cooling. The pump can lift the condensation up to 14 feet, and a PVC drain system will be necessary to route the condensation to a suitable wastewater location. Refrigerant and wiring connections are the same as those for wall-mounted units.
FEATURES
9,000 BTU heating or cooling capacity Additional modes available: Dry mode and Fan mode Suitable for small rooms in most climates 4-way air supply for consistent room coverage Handheld remote control included Decorative grille included
